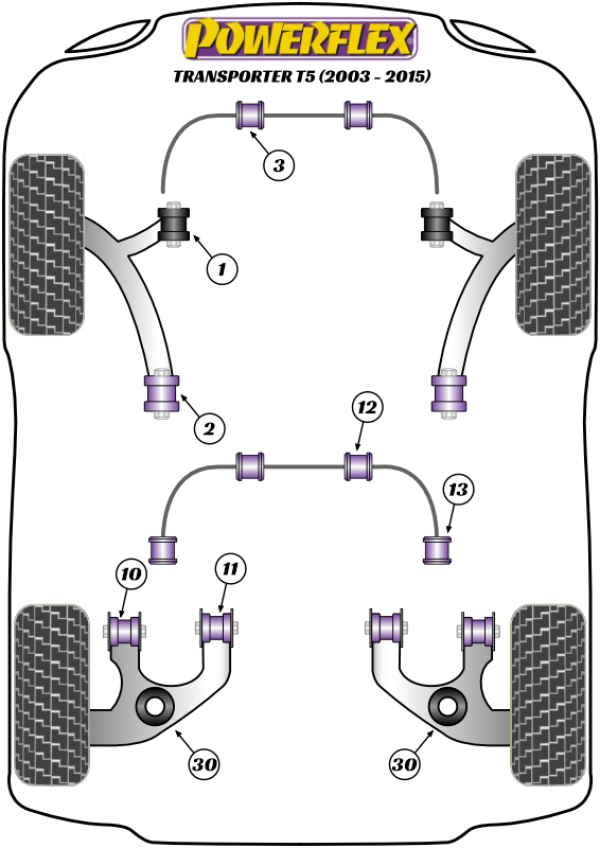

T5 TRANSPORTER INC. 4MOTION (2003-2015) - ROAD SERIES

  • PFF85-1301G allows on-car Camber adjustment of +/- 0.75 deg. Use PFF85-1301 if no adjustment is required
  • PFF85-1302G allows on-car Caster adjustment of +/- 0.6 deg. Use PFF85-1302 if no adjustment is required
  • PFR85-1310G and PFR85-1311G allow on-car adjustment of +/- 1.0 deg. camber and toe. Use PFF85-1310 and PFR85-1311 if no adjustment is required
  • PFA100-14 are camber bolts for additional adjustment, they do not fit vehicles where the front shock absorber slides into the hub it has to have a bracket at the bottom of the shock with 2 bolt fixing to work.

Sort by Position: Low to High
100 Per Page
PowerAlign Wheel Mounting Guide Pin

PF99-514-15

Diagram Reference: #N/A

$64.40
PowerAlign Camber Bolt Kit (14mm)

PFA100-14

Diagram Reference: #N/A

$61.70
Front Arm Front Bush

PFF85-1301

Diagram Reference: #1

$160.40
Front Arm Front Bush, Camber Adjustable

PFF85-1301G

Diagram Reference: #1

$240.30
Front Arm Rear Bush

PFF85-1302

Diagram Reference: #2

$186.60
Front Arm Rear Bush, Caster Adjustable

PFF85-1302G

Diagram Reference: #2

$263.70
Front Anti Roll Bar Bush 22mm

PFF85-1303-22

Diagram Reference: #3

$110.00
Front Anti Roll Bar Bush 23mm

PFF85-1303-23

Diagram Reference: #3

$110.00
Front Anti Roll Bar Bush 25mm

PFF85-1303-25

Diagram Reference: #3

$109.90
Rear Arm Outer Bush

PFR85-1310

Diagram Reference: #10

$198.30
Rear Arm Outer Bush, Adjustable

PFR85-1310G

Diagram Reference: #10

$287.00
Rear Arm Inner Bush

PFR85-1311

Diagram Reference: #11

$221.70
Rear Arm Inner Bush, Adjustable

PFR85-1311G

Diagram Reference: #11

$303.40
Rear Anti Roll Bar Bush to Chassis 22mm

PFR85-1312-22

Diagram Reference: #12

$109.90
Rear Anti Roll Bar Bush to Chassis 24mm

PFR85-1312-24

Diagram Reference: #12

$109.80
Rear Anti Roll Bar Bush to Chassis 28mm

PFR85-1312-28

Diagram Reference: #12

$109.60
Rear Anti Roll Bar Bush to Arm 22mm

PFR85-1313-22

Diagram Reference: #13

$109.90
Rear Anti Roll Bar Bush to Arm 24mm

PFR85-1313-24

Diagram Reference: #13

$109.70
Rear Anti Roll Bar Bush to Arm 28mm

PFR85-1313-28

Diagram Reference: #13

$109.70
Rear Lower Spring Isolator Pad

PFR85-1330

Diagram Reference: #30

$107.60
