Home/CAR MAKE/VOLKSWAGEN/TRANSPORTER MODELS/T4 TRANSPORTER (1990 - 2003)

T4 TRANSPORTER (1990 - 2003)

PFF85-1101 fits early vehicles 1991-1996
PFF85-1131 fits late vehicles 1997-2004
PFF85-1104-23 fits 23mm front anti roll bar from 1991 to 1996
PFF85-1103-23 fits 23mm front anti roll bar from 1996 to 2004
PFF85-1103-27 fits 27mm front anti roll bar all years
PFF85-1107 not needed for 27mm it only fits 23mm diameter anti roll bars.
PFF85-1120-* Vehicles between 1991 & 1994 use either 8mm or 10mm bolts, please check, later vehicles use 10mm bolts.
PFR85-1020 KIT3 only fits the rear diff on Syncro models

PowerAlign Wheel Mounting Guide Pin

PF99-514-15

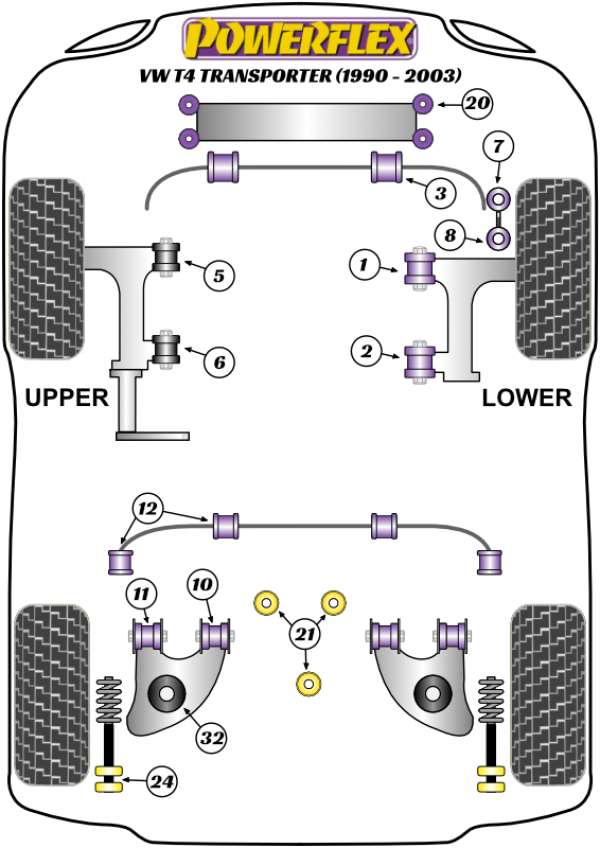

Diagram Reference: #N/A

$64.40

Front Lower Arm Front Bush, upto 1996

PFF85-1101

Diagram Reference: #1

$150.20

Front Lower Arm Front Bush, from 1997

PFF85-1131

Diagram Reference: #1

$155.00

Front Lower Arm Rear Bush

PFF85-1102

Diagram Reference: #2

$217.00

Front Anti Roll Bar Mount Bush 23mm

PFF85-1103-23

Diagram Reference: #3

$107.00

Front Anti Roll Bar Mount Bush 27mm

PFF85-1103-27

Diagram Reference: #3

$106.90

Anti Roll Bar Mount Bush 23mm

PFF85-1104-23

Diagram Reference: #3

$106.90

Front Upper Arm Front Bush

PFF85-1105

Diagram Reference: #5

$150.60

Front Upper Arm Rear Bush

PFF85-1106

Diagram Reference: #6

$148.00

Front Anti Roll Bar To Link Rod Bush 23mm

PFF85-1107

Diagram Reference: #7

$106.70

Front Anti Roll Bar Link Rod To Arm Bush

PFF85-1108

Diagram Reference: #8

$153.90

Rear Trailing Arm Inner Bush To Chassis

PFR85-1110

Diagram Reference: #10

$165.50

Rear Trailing Arm Inner Bush To Chassis, Adjustable

PFR85-1110G

Diagram Reference: #10

$220.20

Rear Trailing Arm Outer Bush To Chassis

PFR85-1111

Diagram Reference: #11

$165.20

Rear Trailing Arm Outer Bush To Chassis, Adjustable

PFR85-1111G

Diagram Reference: #11

$220.20

Rear Anti Roll Bar Bush 20mm

PFR85-1112-20

Diagram Reference: #12

$186.30

Rear Anti Roll Bar Bush 26mm

PFR85-1112-26

Diagram Reference: #12

$186.10

Rear Anti Roll Bar Bush 28mm

PFR85-1112-28

Diagram Reference: #12

$181.30

Front Steering Rack Mount Bush 10mm Bolt

PFF85-1120-10

Diagram Reference: #20

$232.90

Front Steering Rack Mount Bush 8mm Bolt

PFF85-1120-8

Diagram Reference: #20

$233.00

Diff Mounting Bush Kit of 3

PFR85-1020KIT3

Diagram Reference: #21

$223.60

Front Damper Ring Bush

PF85-1022

Diagram Reference: #24

$92.90

Rear Spring Pad 13mm Set of 2

PFR85-1132-13-2

Diagram Reference: #32

$100.60

Rear Spring Pad 13mm Set of 4

PFR85-1132-13-4

Diagram Reference: #32

$165.90

Rear Spring Pad 8mm Set of 2

PFR85-1132-8-2

Diagram Reference: #32

$99.40

Rear Spring Pad 8mm Set of 4

PFR85-1132-8-4

Diagram Reference: #32

$163.60
