PASSAT CC 35 (2008-2012) - ROAD SERIES

  • PFF85-501G is on-car camber adjustable offering +/-0.5° of adjustment. For a non-adjustable bush use PFF85-501.
  • PFF85-502G gives 1° of additional caster angle and anti-lift properties and is supplied with the bush pre-fitted into the new bracket. For a bush without geometry adjustment, use PFF85-502.
  • PFF85-504 fits vehicles up to the middle of 2008. Please check the picture of the 2 bushes in order to identify the insert you require.
  • PFF85-704 fits vehicles from the middle of 2008 on. Please check the picture of the 2 bushes in order to identify the insert you require.
  • PFR85-524 & PFR85-525 fit 4WD models.
  • PFR85-527 & PFR85-528 fit 4WD models only up to 28.5.2012.

Sort by Position: Low to High
100 Per Page
PowerAlign Wheel Mounting Guide Pin

PF99-514-15

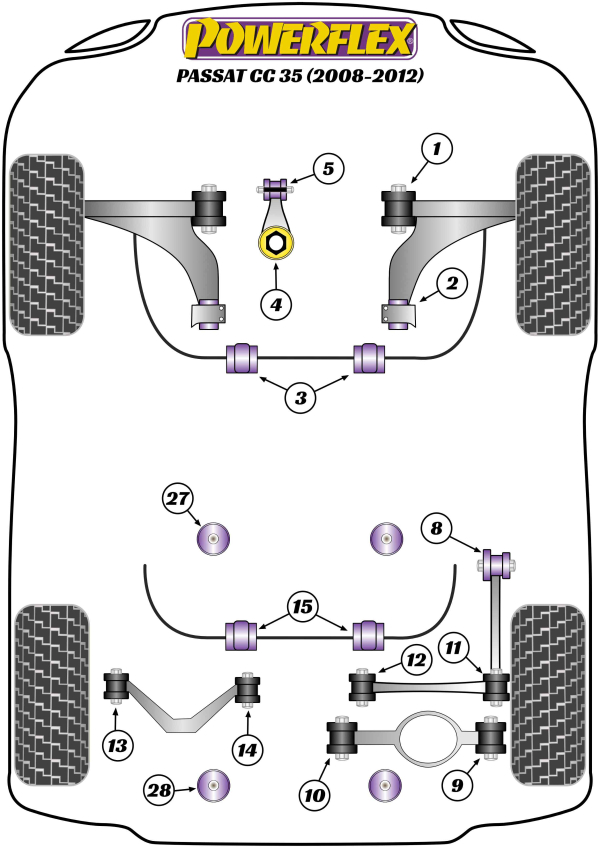

Diagram Reference: #N/A

$64.40
Jacking Point Insert

Diagram Reference #N/A: PF3-1663

$58.50
Jacking Point Insert Kit of 4

Diagram Reference #N/A: PF3-1663K

$161.40
Front Wishbone Front Bush

PFF85-501

Diagram Reference: #1

$155.40
Front Wishbone Front Bush Camber Adjustable

PFF85-501G

Diagram Reference: #1

$270.20
Front Wishbone Rear Bush

PFF85-502

Diagram Reference: #2

$176.70
Front Wishbone Rear Bush Anti-Lift & Caster Offset

PFF85-502G-5

Diagram Reference: #2

$450.10
Front Anti Roll Bar Bush 19.6mm

PFF85-503-19.6

Diagram Reference: #3

$107.20
Front Anti Roll Bar Bush 20mm

PFF85-503-20

Diagram Reference: #3

$105.00
Front Anti Roll Bar Bush 20.7mm

PFF85-503-20.7

Diagram Reference: #3

$107.20
Front Anti Roll Bar Bush 21.7mm

PFF85-503-21.7

Diagram Reference: #3

$107.20
Front Anti Roll Bar Bush 22mm

PFF85-503-22

Diagram Reference: #3

$107.20
Front Anti Roll Bar Bush 22.5mm

PFF85-503-22.5

Diagram Reference: #3

$105.00
Front Anti Roll Bar Bush 23mm

PFF85-503-23

Diagram Reference: #3

$105.00
Front Anti Roll Bar Bush 23.6mm

PFF85-503-23.6

Diagram Reference: #3

$105.00
Front Anti Roll Bar Bush 24mm

PFF85-503-24

Diagram Reference: #3

$105.00
Lower Engine Mount Insert (Large) Petrol/Tuned Diesel

PFF85-504

Diagram Reference: #4

$73.20
Lower Engine Mount Insert (Large) Track

PFF85-504P

Diagram Reference: #4

$73.20
Lower Engine Mount Insert (Large) Std Diesel

PFF85-504R

Diagram Reference: #4

$73.20
Lower Engine Mount Insert (Large) Petrol/Tuned Diesel

PFF85-704

Diagram Reference: #4

$74.40
Lower Engine Mount Insert (Large) Track

PFF85-704P

Diagram Reference: #4

$74.40
Lower Engine Mount Insert (Large) Std Diesel

PFF85-704R

Diagram Reference: #4

$74.40
Lower Engine Mount Small Bush

PFF3-905

Diagram Reference: #5

$69.50
Lower Engine Mount Small Bush

Diagram Reference #5: PFF85-505

$75.20
Rear Tie Bar to Chassis Front Bush

PFR85-508

Diagram Reference: #8

$182.80
Rear Lower Spring Mount Outer

PFR85-509

Diagram Reference: #9

$145.20
Rear Lower Spring Mount Inner

PFR85-510

Diagram Reference: #10

$143.30
Rear Lower Track Rod Outer Bush

PFR85-511

Diagram Reference: #11

$195.30
Rear Lower Track Rod Inner Bush

PFR85-512

Diagram Reference: #12

$190.80
Rear Upper Wishbone Outer Bush

PFR85-513

Diagram Reference: #13

$164.50
Rear Upper Wishbone Inner Bush

PFR85-514

Diagram Reference: #14

$145.50
Rear Anti Roll Bar Bush 18mm

PFR85-515-18

Diagram Reference: #15

$109.90
Rear Anti Roll Bar Bush 18.5mm

PFR85-515-18.5

Diagram Reference: #15

$109.80
Rear Anti Roll Bar Bush 19.6mm

PFR85-515-19.6

Diagram Reference: #15

$109.80
Rear Anti Roll Bar Bush 20.5mm

PFR85-515-20.5

Diagram Reference: #15

$109.80
Rear Anti Roll Bar Bush 20.7mm

PFR85-515-20.7

Diagram Reference: #15

$109.80
Rear Anti Roll Bar Bush 21.7mm

PFR85-515-21.7

Diagram Reference: #15

$109.80
Rear Diff Front Mounting Bush

PFR85-524

Diagram Reference: #24

$91.10
Rear Diff Rear Mounting Bush

PFR85-525

Diagram Reference: #25

$177.10
Rear Subframe Front Mounting Bush

PFR85-527

Diagram Reference: #27

$264.80
Rear Subframe Rear Mounting Bush

PFR85-528

Diagram Reference: #28

$298.30
