GOLF MK5 1K - ROAD SERIES

  • PFF85-501G is on-car camber adjustable offering +/-0.5° of adjustment. For a non-adjustable bush use PFF85-501.
  • PFF85-502G comes complete with bracket and gives an additional 1° of caster angle with anti-lift properties. For a bush without the bracket and adjustment, use PFF85-502.
  • PFF85-504 fits vehicles up to the middle of 2008. Please check the picture of the 2 bushes in order to identify the insert you require.
  • PFF85-704 fits vehicles from the middle of 2008 on. Please check the picture of the 2 bushes in order to identify the insert you require.
  • PFR85-523 & PFR85-525 fit 4WD models only.
  • PFR85-527 & PFR85-528 fit 4WD models only up to 28.5.2012.
  • PFF85-531 & PFF85-532 are inserts designed to fill the voids of the original Upper Engine Mount bush as found on various models. Please check that the voids in your OE mount are the same as shown in the image below for correct fitment.

PF99-514-15

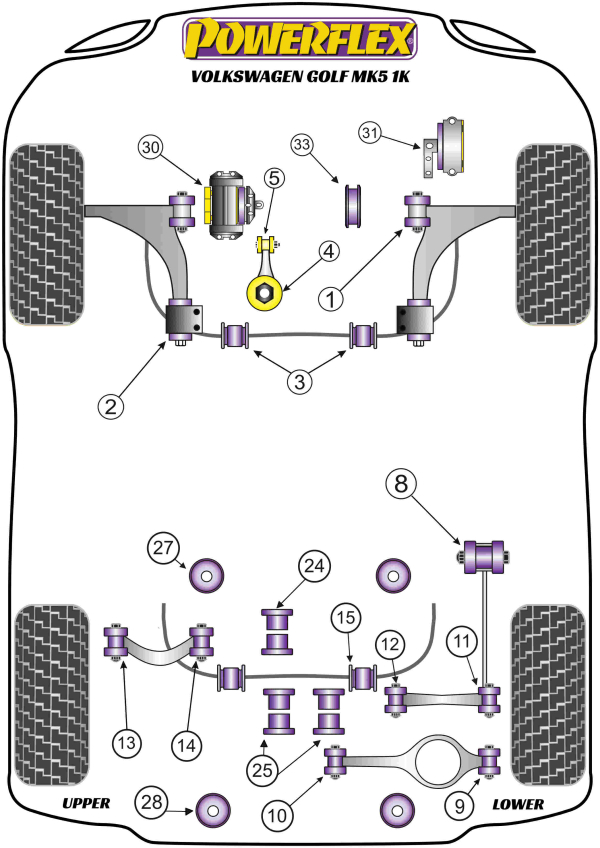

Diagram Reference: #N/A

$64.40

Diagram Reference #N/A: PF3-1661

$61.50

Diagram Reference #N/A: PF3-1663

$58.50

Diagram Reference #N/A: PF3-1663K

$161.40

Diagram Reference #N/A - PF85K-1005

$569.30

Diagram Reference #N/A - PF85K-1006

$571.70

PFF85-501

Diagram Reference: #1

$155.40

PFF85-501G

Diagram Reference: #1

$270.20

PFF85-502

Diagram Reference: #2

$176.70

PFF85-502G

Diagram Reference: #2

$429.10

PFF85-503-21.7

Diagram Reference: #3

$107.20

PFF85-503-22

Diagram Reference: #3

$107.20

PFF85-503-22.5

Diagram Reference: #3

$105.00

PFF85-503-23.6

Diagram Reference: #3

$105.00

PFF85-503-24

Diagram Reference: #3

$105.00

PFF85-504

Diagram Reference: #4

$73.20

PFF85-504P

Diagram Reference: #4

$73.20

PFF85-504R

Diagram Reference: #4

$73.20

PFF85-704

Diagram Reference: #4

$74.40

PFF85-704P

Diagram Reference: #4

$74.40

PFF85-704R

Diagram Reference: #4

$74.40

Diagram Reference #5: PFF85-505

$75.20

PFR85-508

Diagram Reference: #8

$182.80

PFR85-509

Diagram Reference: #9

$145.20

PFR85-510

Diagram Reference: #10

$143.30

PFR85-511

Diagram Reference: #11

$195.30

PFR85-512

Diagram Reference: #12

$190.80

PFR85-513

Diagram Reference: #13

$164.50

PFR85-514

Diagram Reference: #14

$145.50

PFR85-515-18.5

Diagram Reference: #15

$109.80

PFR85-515-19.6

Diagram Reference: #15

$109.80

PFR85-515-20.5

Diagram Reference: #15

$109.80

PFR85-515-20.7

Diagram Reference: #15

$109.80

PFR85-515-21.7

Diagram Reference: #15

$109.80

PFR85-523

Diagram Reference: #24

$90.40

PFR85-525

Diagram Reference: #25

$177.10

PFR85-527

Diagram Reference: #27

$264.80

PFR85-528

Diagram Reference: #28

$298.30

PFF85-530

Diagram Reference: #30

$100.30

PFF85-531

Diagram Reference: #31

$86.10

PFF85-532

Diagram Reference: #31

$86.10

PFF85-533

Diagram Reference: #33

$59.30
