CADDY MK3 TYP 2K (2004 - 06/2010) - ROAD SERIES

  • PFF85-501G is on-car camber adjustable offering +/-0.5° of adjustment, for a non adjustable bush use PFF85-501.
  • PFF85-502G gives 1° of additional caster angle and anti lift properties, the bush is supplied pre fitted into the new bracket, for a bush without geometry adjustment use PFF85-502.
  • PFF85-504 fits vehicles upto the middle of 2008, please check the picture of the 2 bushes in order to identify the insert you require.
  • PFF85-704 fits vehicles from the middle of 2008 on, please check the picture of the 2 bushes in order to identify the insert you require.
  • PFR85-1513-20 replaces the original bush on standard 20mm diameter anti roll bars.
  • PFR85-1513-22 replaces the original bush found on long wheel base Caddy vehicles and accomodates anti roll bars commonly upgraded to 22mm.

PF99-514-15

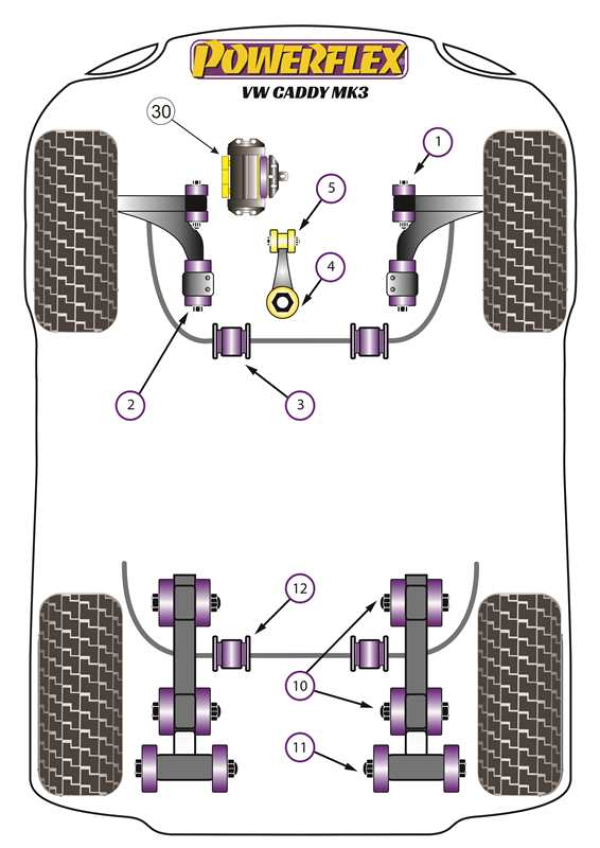

Diagram Reference: #N/A

$64.40

Diagram Reference #N/A: PF3-1663

$58.50

Diagram Reference #N/A: PF3-1663K

$161.40

PFF85-501

Diagram Reference: #1

$155.40

PFF85-501G

Diagram Reference: #1

$270.20

PFF85-502

Diagram Reference: #2

$176.70

PFF85-502G

Diagram Reference: #2

$429.10

PFF85-503-20

Diagram Reference: #3

$105.00

PFF85-503-22

Diagram Reference: #3

$107.20

PFF85-503-23

Diagram Reference: #3

$105.00

PFF85-503-23.6

Diagram Reference: #3

$105.00

PFF85-504

Diagram Reference: #4

$73.20

PFF85-504P

Diagram Reference: #4

$73.20

PFF85-504R

Diagram Reference: #4

$73.20

PFF85-704

Diagram Reference: #4

$74.40

PFF85-704P

Diagram Reference: #4

$74.40

PFF85-704R

Diagram Reference: #4

$74.40

Diagram Reference #5: PFF85-505

$75.20

PFR85-1410-4

Diagram Reference: #10

$308.90

PFR85-1510

Diagram Reference: #11

$178.10

PFR85-1513-20

Diagram Reference: #12

$102.40

PFR85-1513-22

Diagram Reference: #12

$102.40

PFF85-530

Diagram Reference: #30

$100.30
