IMPREZA TURBO INC. WRX & STI GD,GG (2000 - 2007) - ROAD SERIES

  • Front wishbones can be steel or alloy - our bushes will fit both.
  • The Rear Lateral Link Front Inner Bush uses a smaller 12mm bolt. To replace all Rear Lateral Link bushes, use 6 x PFR69-110 & 2 x PFR69-111
  • PFF69-107 will only fit pressed steel lower arms
  • PFR69-122's are for Rear Diffs that mount directly to the subframe
  • PFF69-102G is geometry adjustable and allows +/-0.33 degrees of Caster adjustment
  • For Rear Anti Roll Bar Bushes Use PF69-303-* up to 10/02, PFR69-305-* 11/02 on
  • PFF69-109K fits years 2000 to 2004 only
  • PFR69-118 fits the LH side of the beam and PFR69-124 fits the RH side of the beam as shown below.
Sort by Position: Low to High
100 Per Page
PowerAlign Camber Bolt Kit (14mm)

PFA100-14

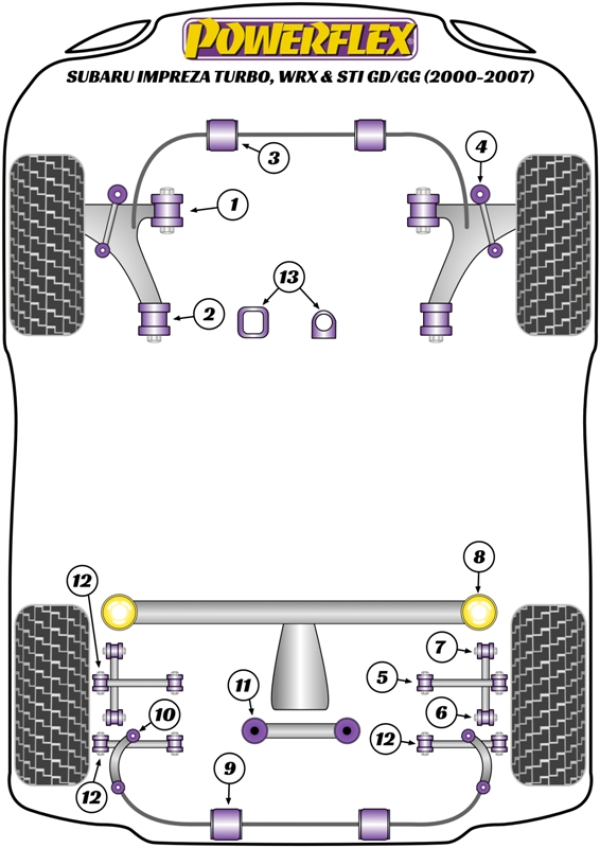

Diagram Reference: #N/A

$61.70
PowerAlign Camber Bolt Kit (16mm)

PFA100-16

Diagram Reference: #N/A

$68.00
Front Wishbone Front Bush

PFF69-201

Diagram Reference: #1

$147.70
Front Wishbone Rear Bush

PFF69-102

Diagram Reference: #2

$181.40
Front Arm Rear Bush - Caster Adjust

PFF69-102G

Diagram Reference: #2

$239.20
Front Anti Roll Bar Bush 18mm

PFF69-205-18

Diagram Reference: #3

$104.90
Front Anti Roll Bar Bush 19mm

PFF69-205-19

Diagram Reference: #3

$104.90
Front Anti Roll Bar Bush 20mm

PFF69-205-20

Diagram Reference: #3

$102.50
Front Anti Roll Bar Bush 22mm

PFF69-205-22

Diagram Reference: #3

$102.50
Front Anti Roll Bar Bush 23mm

PFF69-205-23

Diagram Reference: #3

$102.40
Front Anti Roll Bar End Link

PFF69-107

Diagram Reference: #4

$150.00
Rear Lateral Link Front Inner Bush

Diagram Reference #5: PFR69-111

$133.00
Rear Trailing Link Rear Bush

PFR69-115

Diagram Reference: #6

$145.20
Rear Trailing Link Front Bush

PFR69-117

Diagram Reference: #7

$167.30
Rear Subframe-Front Outrigger To Chassis Left Side

PFR69-118

Diagram Reference: #8

$98.20
Rear Subframe-Front Outrigger To Chassis Right Side

PFR69-124

Diagram Reference: #8

$105.40
Rear Anti Roll Bar To Chassis Bush 15mm

PF69-303-15

Diagram Reference: #9

$101.20
Rear Anti Roll Bar To Chassis Bush 17mm

Diagram Reference #9: PF69-303-17

$101.20
Rear Anti Roll Bar To Chassis Bush 18mm

Diagram Reference #9: PF69-303-18

$101.20
Rear Anti Roll Bar To Chassis Bush 19mm

Diagram Reference #9: PF69-303-19

$101.20
Rear Anti Roll Bar To Chassis Bush 20mm

Diagram Reference #9: PF69-303-20

$101.20
Rear Anti Roll Bar To Chassis Bush 14mm

Diagram Reference #9: PFR69-305-14

$101.20
Rear Anti Roll Bar To Chassis Bush 17mm

Diagram Reference #9: PFR69-305-17

$101.20
Rear Anti Roll Bar To Chassis Bush 18mm

Diagram Reference #9: PFR69-305-18

$101.20
Rear Anti Roll Bar To Chassis Bush 19mm

Diagram Reference #9: PFR69-305-19

$101.20
Rear Anti Roll Bar To Chassis Bush 20mm

Diagram Reference #9: PFR69-305-20

$101.20
Rear Roll Bar Link Bush

PFR69-119

Diagram Reference: #10

$237.80
Rear Diff Mounting Bush

PFR69-122

Diagram Reference: #11

$169.80
Rear Lateral Link Bush

PFR69-110

Diagram Reference: #12

$359.60
Steering Rack Mount Bushes

PFF69-109K

Diagram Reference: #13

$78.10
Exhaust Mount

Diagram Reference #N/A: EXH009

$33.90
Exhaust Mount

EXH009

Diagram Reference: #N/A

$101.70
